EXPLAIN

The EXPLAIN feature in Firebolt is a powerful tool that helps you understand how the system executes a query. It provides insight into the execution plan that Firebolt will use to compute the result of your query. This information is crucial for query optimization and understanding the performance of your SQL queries.

If you specify the ANALYZE option for EXPLAIN, Firebolt also executes the query and collects detailed metrics about each operator, such as how much time is spent on the operator, and how much data it processes.

Syntax

EXPLAIN [( <option_name> [<option_value>] [, ...] )] <select_statement>
Parameter Description
option_name The name of an option. See below for a list of all available options.
option_value The value of the option. If no value is specified, it is TRUE by default.
<select_statement> Any select statement.

Explain Options

The output of EXPLAIN can be augmented by specifying options. The following table lists all available options:

Option Name Option Values Description
LOGICAL TRUE, FALSE Returns the optimized logical query plan in the column explain_logical. Its default value is TRUE if neither the PHYSICAL nor the ANALYZE option is enabled. Otherwise, it is FALSE.
PHYSICAL TRUE, FALSE Returns the optimized physical query plan containing shuffle operators for queries on distributed engines. This gives insights how work is distributed between the nodes of an engine. The result is returned in the column explain_physical. Its default value is FALSE.
ANALYZE TRUE, FALSE Executes the query and returns the optimized physical query plan annotated with metrics from query execution in the column explain_analyze. The metrics are explained in Example with ANALYZE. Its default value is FALSE.
ALL TRUE, FALSE Changes the default value of LOGICAL, PHYSICAL, and ANALYZE. Its default value is FALSE. Executing EXPLAIN (ALL) <select statement> set the value of the ALL option to TRUE, and thus enables the LOGICAL, PHYSICAL, and ANALYZE options.

Example

The example below demonstrates an EXPLAIN statement for a SELECT query on a table named lineitem.

EXPLAIN
SELECT
	l_shipdate,
	l_linestatus,
	l_orderkey,
	AVG(l_discount)
FROM
	lineitem
WHERE
	l_returnflag = 'N'
	AND l_shipdate > '1996-01-01'
GROUP BY
	ALL
ORDER BY
	1,2,3,4;

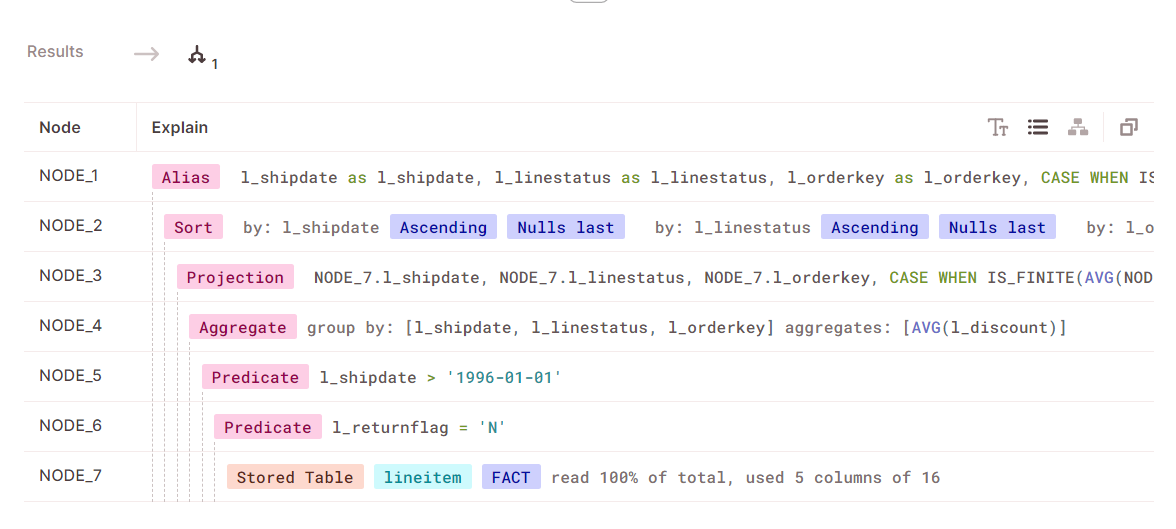

Returns:

[0] [Projection] lineitem.l_shipdate, lineitem.l_linestatus, lineitem.l_orderkey, avgOrNull(lineitem.l_discount)
 \_[1] [Sort] OrderBy: [lineitem.l_shipdate Ascending Last, lineitem.l_linestatus Ascending Last, lineitem.l_orderkey Ascending Last, avgOrNull(lineitem.l_discount) Ascending Last]
    \_[2] [Aggregate] GroupBy: [lineitem.l_orderkey, lineitem.l_linestatus, lineitem.l_shipdate] Aggregates: [avgOrNull(lineitem.l_discount)]
       \_[3] [Projection] lineitem.l_orderkey, lineitem.l_discount, lineitem.l_linestatus, lineitem.l_shipdate
          \_[4] [Predicate] equals(lineitem.l_returnflag, 'N'), greater(lineitem.l_shipdate, toPGDate('1996-01-01'))
             \_[5] [StoredTable] Name: 'lineitem', used 5/16 column(s) FACT

The EXPLAIN results indicate that this SELECT query will execute operations as follows. The Firebolt engine will:

  1. Read the required columns from the lineitem table.
  2. Filter the lineitem table by the WHERE conditions.
  3. Remove the columns that are no longer required.
  4. Perform the aggregation as specified by the GROUP BY clause.
  5. Sort resulting rows in ascending order by all columns from the ORDER BY clause.
  6. Bring the columns into the order specified in the SELECT clause.

Example with ANALYZE

Now, we execute the same query on a multi-node engine, but with the (ALL) option specified. This is equivalent to writing (ALL TRUE) or (LOGICAL, PHYSICAL, ANALYZE).

EXPLAIN (ALL)
SELECT
	l_shipdate,
	l_linestatus,
	l_orderkey,
	AVG(l_discount)
FROM
	lineitem
WHERE
	l_returnflag = 'N'
	AND l_shipdate > '1996-01-01'
GROUP BY
	ALL
ORDER BY
	1,2,3,4;

Returns:

Disclaimer
The exact format of this result is still subject to change.

The query returns three columns explain_logical, explain_physical, and explain_analyze. They are presented in the following sections.

Each column can be turned off individually using the corresponding option. For example, to only show explain_logical and explain_analyze, we could either specify (LOGICAL, ANALYZE) or (ALL, PHYSICAL FALSE). With the ANALYZE option set, this query took 4.7s to execute. If the ANALYZE option is not set, the query is not executed and should return the result almost immediately.

EXPLAIN (LOGICAL) output

[0] [Projection] ref_2, ref_1, ref_0, ref_3
|   [RowType]: pgdate not null, text not null, bigint not null, double precision null
 \_[1] [Sort] OrderBy: [ref_2 Ascending Last, ref_1 Ascending Last, ref_0 Ascending Last, ref_3 Ascending Last]
   |   [RowType]: bigint not null, text not null, pgdate not null, double precision null
    \_[2] [Aggregate] GroupBy: [ref_0, ref_2, ref_3] Aggregates: [avgOrNull(ref_1)]
      |   [RowType]: bigint not null, text not null, pgdate not null, double precision null
       \_[3] [Projection] ref_0, ref_1, ref_3, ref_4
         |   [RowType]: bigint not null, double precision not null, text not null, pgdate not null
          \_[4] [Predicate] equals(ref_2, 'N'), greater(ref_4, toPGDate('1996-01-01'))
            |   [RowType]: bigint not null, double precision not null, text not null, text not null, pgdate not null
             \_[5] [StoredTable] Name: 'lineitem', used 5/16 column(s) FACT, ref_0: 'l_orderkey' ref_1: 'l_discount' ref_2: 'l_returnflag' ref_3: 'l_linestatus' ref_4: 'l_shipdate'
                   [RowType]: bigint not null, double precision not null, text not null, text not null, pgdate not null

The explain_logical column shows the optimized logical query plan of the select statement. This is the same plan as in Example. Additionally, it shows the output row type for each operator. A variable ref_2 refers to the second input column from the operator below. For the operators with multiple input operators like the Join operator, the input columns are concatenated. If the first input emits three columns, and the second input four columns, the columns of the first input are referred to as ref_0 - ref_2, and the columns of the second input are referred to as ref_3 - ref-6.

EXPLAIN (PHYSICAL) output

[0] [Projection] ref_2, ref_1, ref_0, ref_3
|   [RowType]: pgdate not null, text not null, bigint not null, double precision null
 \_[1] [SortMerge] OrderBy: [ref_2 Ascending Last, ref_1 Ascending Last, ref_0 Ascending Last, ref_3 Ascending Last]
   |   [RowType]: bigint not null, text not null, pgdate not null, double precision null
    \_[2] [Shuffle] Gather
      |   [RowType]: bigint not null, text not null, pgdate not null, double precision null
       \_[3] [Sort] OrderBy: [ref_2 Ascending Last, ref_1 Ascending Last, ref_0 Ascending Last, ref_3 Ascending Last]
         |   [RowType]: bigint not null, text not null, pgdate not null, double precision null
          \_[4] [AggregateMerge] GroupBy: [ref_0, ref_1, ref_2] Aggregates: [avgOrNullMerge(ref_3)]
            |   [RowType]: bigint not null, text not null, pgdate not null, double precision null
             \_[5] [Shuffle] Hash by [ref_0, ref_1, ref_2]
               |   [RowType]: bigint not null, text not null, pgdate not null, aggregatefunction2(avgornull, double precision not null) not null
                \_[6] [AggregatePartial] GroupBy: [ref_0, ref_2, ref_3] Aggregates: [avgOrNullState(ref_1)]
                  |   [RowType]: bigint not null, text not null, pgdate not null, aggregatefunction2(avgornull, double precision not null) not null
                   \_[7] [Projection] ref_0, ref_1, ref_3, ref_4
                     |   [RowType]: bigint not null, double precision not null, text not null, pgdate not null
                      \_[8] [Predicate] equals(ref_2, 'N'), greater(ref_4, toPGDate('1996-01-01'))
                        |   [RowType]: bigint not null, double precision not null, text not null, text not null, pgdate not null
                         \_[9] [StoredTable] Name: 'lineitem', used 5/16 column(s) FACT, ref_0: 'l_orderkey' ref_1: 'l_discount' ref_2: 'l_returnflag' ref_3: 'l_linestatus' ref_4: 'l_shipdate'
                               [RowType]: bigint not null, double precision not null, text not null, text not null, pgdate not null

The explain_physical column shows the more detailed optimized physical plan containing Shuffle operators for distributed query execution. It allows insights into how work is distributed across the nodes of an engine. A Shuffle operator redistributes data between the nodes of an engine. Scans of FACT tables, like operator [9] [StoredTable] in the example above, and the operators following it are automatically distributed across all nodes of an engine. A Shuffle operator of type Hash indicates that the work on the operators following it is distributed over all nodes, as well. A Shuffle operator of type Gather gathers all data on a single node of the engine. In the example above, only the operator [1] [SortMerge] is executed on a single node, merging the sorted partial query results from all other nodes.

EXPLAIN (ANALYZE) output

[0] [Projection] ref_2, ref_1, ref_0, ref_3
|   [RowType]: pgdate not null, text not null, bigint not null, double precision null
|   [Execution Metrics]: output cardinality = 24640805, thread time = 0ms, cpu time = 0ms
 \_[1] [SortMerge] OrderBy: [ref_2 Ascending Last, ref_1 Ascending Last, ref_0 Ascending Last, ref_3 Ascending Last]
   |   [RowType]: bigint not null, text not null, pgdate not null, double precision null
   |   [Execution Metrics]: output cardinality = 24640805, thread time = 2805ms, cpu time = 2804ms
    \_[2] [Shuffle] Gather
      |   [RowType]: bigint not null, text not null, pgdate not null, double precision null
      |   [Execution Metrics]: output cardinality = 24640805, thread time = 304ms, cpu time = 303ms
       \_[3] [Sort] OrderBy: [ref_2 Ascending Last, ref_1 Ascending Last, ref_0 Ascending Last, ref_3 Ascending Last]
         |   [RowType]: bigint not null, text not null, pgdate not null, double precision null
         |   [Execution Metrics]: output cardinality = 24640805, thread time = 18025ms, cpu time = 18019ms
          \_[4] [AggregateMerge] GroupBy: [ref_0, ref_1, ref_2] Aggregates: [avgOrNullMerge(ref_3)]
            |   [RowType]: bigint not null, text not null, pgdate not null, double precision null
            |   [Execution Metrics]: output cardinality = 24640805, thread time = 5499ms, cpu time = 5466ms
             \_[5] [Shuffle] Hash by [ref_0, ref_1, ref_2]
               |   [RowType]: bigint not null, text not null, pgdate not null, aggregatefunction2(avgornull, double precision not null) not null
               |   [Execution Metrics]: output cardinality = 24640806, thread time = 2093ms, cpu time = 2065ms
                \_[6] [AggregateState partial] GroupBy: [ref_0, ref_2, ref_3] Aggregates: [avgOrNullState(ref_1)]
                  |   [RowType]: bigint not null, text not null, pgdate not null, aggregatefunction2(avgornull, double precision not null) not null
                  |   [Execution Metrics]: output cardinality = 24640806, thread time = 18498ms, cpu time = 18165ms
                   \_[7] [Projection] ref_0, ref_1, ref_3, ref_4
                     |   [RowType]: bigint not null, double precision not null, text not null, pgdate not null
                     |   [Execution Metrics]: output cardinality = 25050365, thread time = 0ms, cpu time = 0ms
                      \_[8] [Predicate] equals(ref_2, 'N'), greater(ref_4, toPGDate('1996-01-01'))
                        |   [RowType]: bigint not null, double precision not null, text not null, text not null, pgdate not null
                        |   [Execution Metrics]: output cardinality = 25050365, thread time = 703ms, cpu time = 700ms
                         \_[9] [StoredTable] Name: 'lineitem', used 5/16 column(s) FACT, ref_0: 'l_orderkey' ref_1: 'l_discount' ref_2: 'l_returnflag' ref_3: 'l_linestatus' ref_4: 'l_shipdate'
                               [RowType]: bigint not null, double precision not null, text not null, text not null, pgdate not null
                               [Execution Metrics]: output cardinality = 30373792, thread time = 4629ms, cpu time = 4511ms

The explain_analyze column contains the same query plan as the explain_physical column, but annotated with metrics collected during query execution. For each operator, it shows the number of rows it produced (output_cardinality), and how much time was spent on that operator (thread_time and cpu_time). thread_time is the sum of the wall-clock time that threads spent working on this operator across all nodes. cpu_time is the sum of the time these threads where scheduled on a CPU core. If cpu_time is considerably smaller than thread_time, this indicates that the operator is waiting a lot on IO or the engine is under multiple queries at once.

Analyzing the Metrics

In the example above, the cpu_time is almost as high as the thread_time on the StoredTable node. This indicates that the data of the lineitem table was in cache. On a cold run of the same query where the data has to be fetched from S3, the output for the same operator shows a thread_time considerably higher than cpu_time:

[9] [StoredTable] Name: 'lineitem', used 5/16 column(s) FACT, ref_0: 'l_orderkey' ref_1: 'l_discount' ref_2: 'l_returnflag' ref_3: 'l_linestatus' ref_4: 'l_shipdate'
    [RowType]: bigint not null, double precision not null, text not null, text not null, pgdate not null
    [Execution Metrics]: output cardinality = 30373792, thread time = 144771ms, cpu time = 6342ms

Furthermore, we see that a lot of time is spent on sorting the query result:

[1] [SortMerge] OrderBy: [ref_2 Ascending Last, ref_1 Ascending Last, ref_0 Ascending Last, ref_3 Ascending Last]
   |   [RowType]: bigint not null, text not null, pgdate not null, double precision null
   |   [Execution Metrics]: output cardinality = 24640805, thread time = 2805ms, cpu time = 2804ms
    \_[2] [Shuffle] Gather
      |   [RowType]: bigint not null, text not null, pgdate not null, double precision null
      |   [Execution Metrics]: output cardinality = 24640805, thread time = 304ms, cpu time = 303ms
       \_[3] [Sort] OrderBy: [ref_2 Ascending Last, ref_1 Ascending Last, ref_0 Ascending Last, ref_3 Ascending Last]
             [RowType]: bigint not null, text not null, pgdate not null, double precision null
             [Execution Metrics]: output cardinality = 24640805, thread time = 18025ms, cpu time = 18019ms

Thus, removing the ORDER BY can considerably speed up query execution. In this case, the execution time of the whole query halves from 4.7s to 2.3s. If we are only interested in the first results according to our specified sorting order, we can introduce a LIMIT operator to improve performance, as well. Adding a LIMIT 10000 to the query gives the following output:

[1] [SortMerge] OrderBy: [ref_2 Ascending Last, ref_1 Ascending Last, ref_0 Ascending Last, ref_3 Ascending Last] Limit: [10000]
|   [RowType]: bigint not null, text not null, pgdate not null, double precision null
|   [Execution Metrics]: output cardinality = 10000, thread time = 1ms, cpu time = 1ms
 \_[2] [Shuffle] Gather
   |   [RowType]: bigint not null, text not null, pgdate not null, double precision null
   |   [Execution Metrics]: output cardinality = 40000, thread time = 1ms, cpu time = 1ms
    \_[3] [Sort] OrderBy: [ref_2 Ascending Last, ref_1 Ascending Last, ref_0 Ascending Last, ref_3 Ascending Last] Limit: [10000]
      |   [RowType]: bigint not null, text not null, pgdate not null, double precision null
      |   [Execution Metrics]: output cardinality = 40000, thread time = 2215ms, cpu time = 2190ms
       \_[4] [AggregateMerge] GroupBy: [ref_0, ref_1, ref_2] Aggregates: [avgOrNullMerge(ref_3)]
             [RowType]: bigint not null, text not null, pgdate not null, double precision null
             [Execution Metrics]: output cardinality = 24640805, thread time = 5644ms, cpu time = 5608ms

The time spent in the Sort operator is almost an order of magnitude lower. The Sort operator takes the LIMIT clause directly into account and emits only the minimum number of rows it is required to. The execution time of the whole query is reduced from 4.7s to 1.7s. This is even more than the improvement by removing the ORDER BY clause, because less query result data needs to be serialized for returning it to the client.
