Work with engines

You can create, run, modify, and scale Firebolt engines using either the Firebolt Workspace user interface (UI) or the Firebolt API. Learn how to perform key engine operations, including starting, stopping, resizing, and configuring auto-start/stop settings, using both the UI and SQL commands. Firebolt also allows the dynamic scaling of engines without stopping them.

All the engine operations in this guide can be performed using a system engine.

Topics:

Create engines

You can create an engine using SQL scripts or through the UI in the Develop Space.

Create an engine using the UI

  1. Login to the Firebolt Workspace.
  2. Select the Develop Space icon (</>) from the left navigation bar.
  3. Select the red plus (+) button from the top of the left navigation bar.
  4. Select Create new engine.

  5. Enter the engine name, type, and number of nodes.

  6. Select Create new engine.

Create an engine using the API

To create an engine, use CREATE ENGINE.

The following code example creates an engine with one cluster containing two nodes of type S:

CREATE ENGINE myengine;

The following code example creates an engine with two nodes of type M:

CREATE ENGINE myengine WITH
TYPE="M" NODES=2 CLUSTERS=1;

When creating an engine using the UI, Firebolt preserves the exact capitalization of the engine name. For example, an engine named MyEngine will retain its casing. To reference this engine in SQL commands, enclose the name in quotes: “MyEngine”. For more information, visit the Object Identifiers page.

Start or resume an engine

Start an engine using the UI

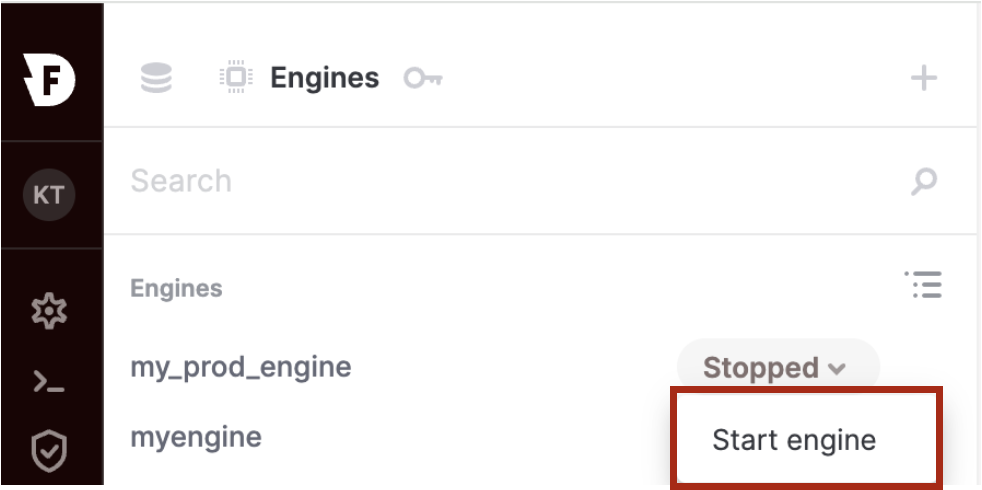

  1. In the Engines list, find the engine you want to start.
  2. Open the dropdown menu next to the engine and select Start engine.

  3. The engine status changes to Running once started.

Start an engine using the API

To start your engine, use the START ENGINE command:

START ENGINE myengine;

Stop an engine

Stop an engine using the UI

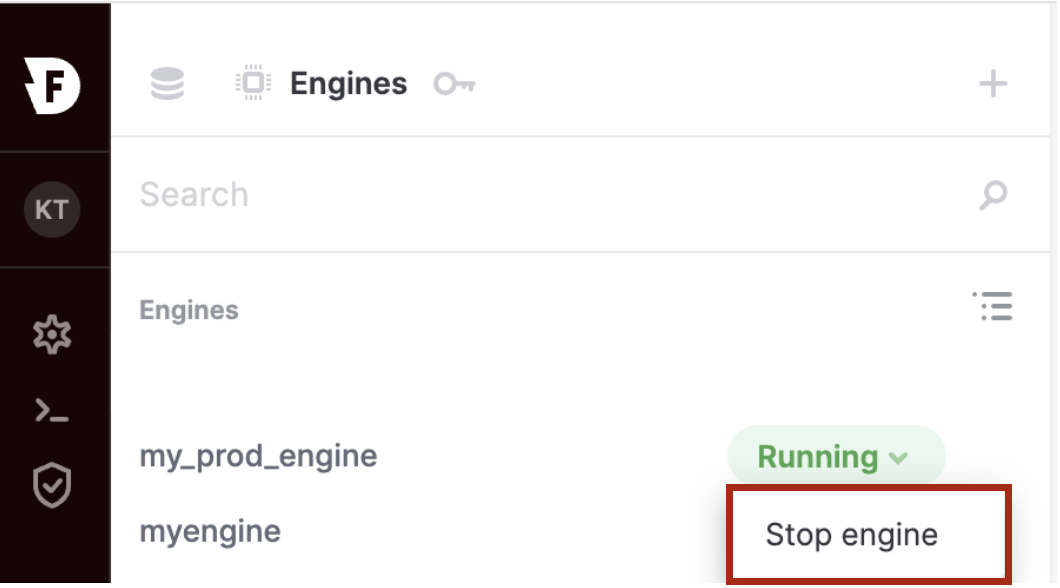

  1. In the Engines list, find the engine you want to stop.
  2. Open the dropdown menu and select Stop engine.

Stop an engine using the API

To stop an engine, use the STOP ENGINE command:

STOP ENGINE myengine;

To stop an engine immediately without waiting for running queries to complete, use:

STOP ENGINE myengine WITH TERMINATE=TRUE;

Stopping an engine clears its cache. Queries run after restarting will experience a cold start, potentially impacting performance until the cache is rebuilt.

Resize engines

Scale engines up or down using the UI

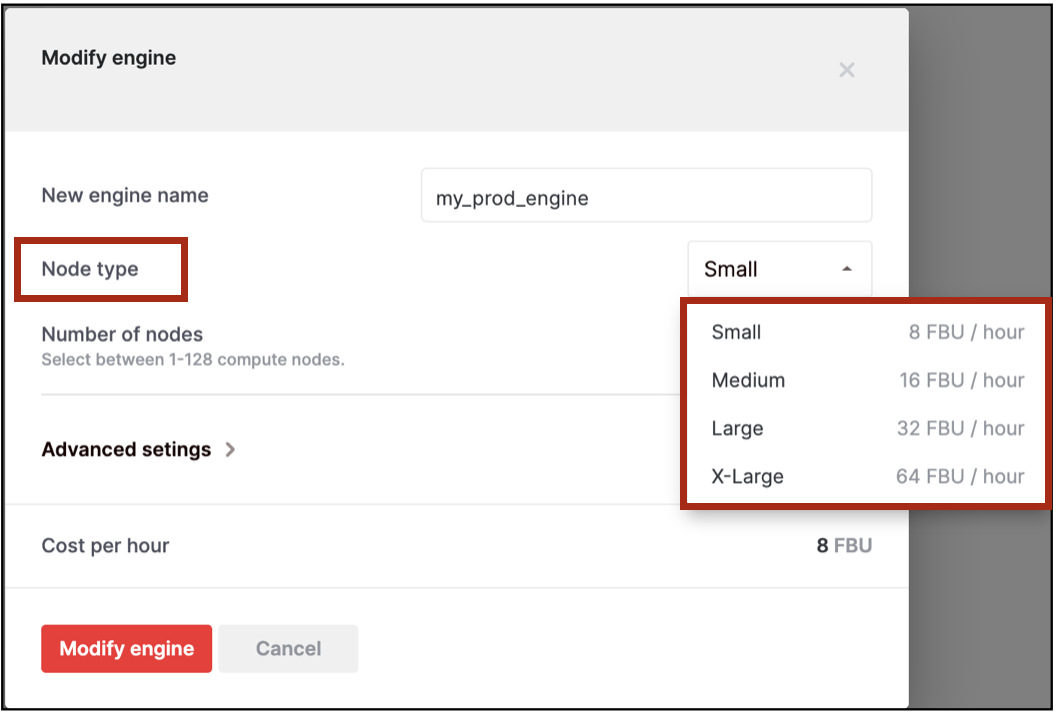

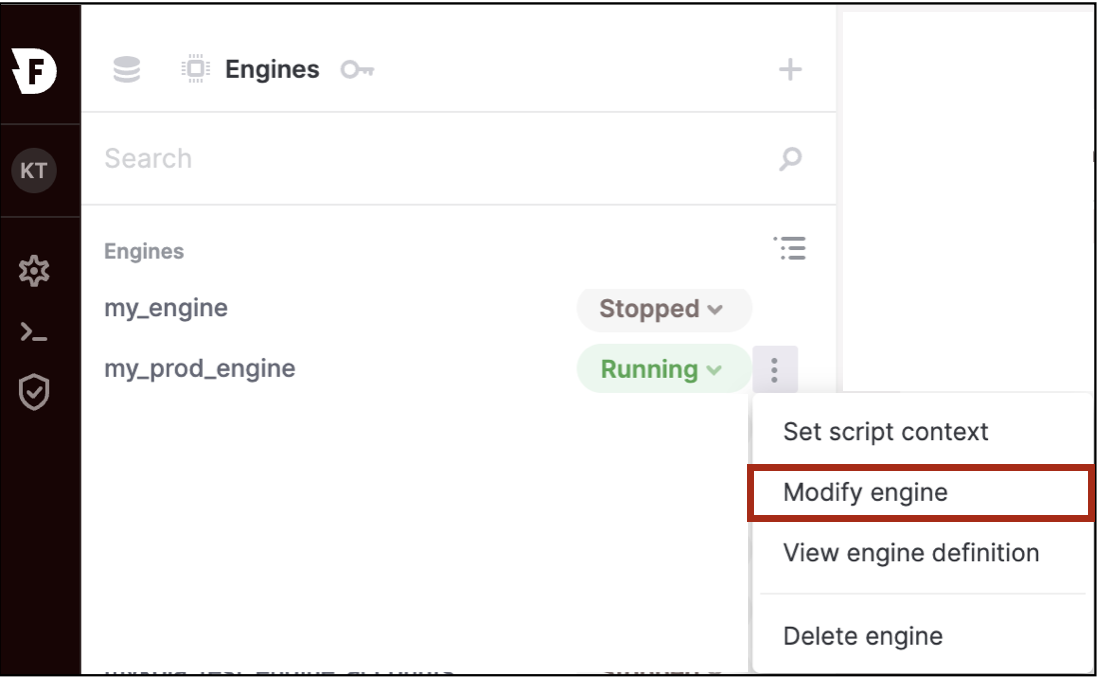

  1. In the Engines list, find the engine to modify.
  2. Open the dropdown menu and select the More options icon (More options icon).
  3. Choose Modify engine.

  4. Choose the new node type and select Modify engine.

Scale engines up or down using the API

Use the ALTER ENGINE command to change the node type:

ALTER ENGINE my_prod_engine SET TYPE = “M”;

The previous example updates all nodes in the engine to use the ‘M’ type.

Scale engines out or in using the UI

  1. In the Engines list, find the engine to modify.
  2. Open the dropdown menu, select the More options icon (More options icon), and choose Modify engine.

  3. Adjust the number of nodes using the (-) and (+) buttons.

Scale engines out or in using the API

Use the ALTER ENGINE command to change the number of nodes:

ALTER ENGINE my_prod_engine SET NODES = 3;

The previous example updates the engine so that it uses three nodes.

Concurrency auto-scaling

You can use the MIN_CLUSTERS and MAX_CLUSTERS parameters to enable auto-scaling and allow the engine to adjust the number of clusters based on workload. Firebolt scales the clusters between the defined minimum and maximum based on engine CPU usage, time in the queue, and other factors that vary with demand. Auto-scaling helps your engine adapt to fluctuating workloads, improving performance, minimizing delays during high demand, avoiding bottlenecks, ensuring consistent query response times, and optimizing resource utilization for a more cost-effective solution.

To use auto-scale, do the following:

  1. Create an engine with MIN_CLUSTERS set to a value and MAX_CLUSTERS set to a value higher than MIN_CLUSTERS as shown in the following code example:

     CREATE ENGINE your_engine with MIN_CLUSTERS = 1 MAX_CLUSTERS = 2;

    In the previous code example, If MIN_CLUSTERS has the same value as MAX_CLUSTERS, auto-scaling is not enabled.

  2. Check the information_schema.engines view to check how many clusters are being used by your engine. The following code example returns the number of CLUSTERS, MIN_CLUSTERS, and MAX_CLUSTERS from the specified engine:

     SELECT CLUSTERS, MIN_CLUSTERS, MAX_CLUSTERS
 FROM information_schema.engines WHERE engine_name = 'your_engine'

    You can also select the Engine monitoring tab at the bottom of the SQL script editor in the Develop Workspace as shown in the following image:

    Icon showing the engine monitoring tab selected in the Firebolt Develop Workspace.

    The Engine monitoring tab displays CPU, memory, and disk use, cache reads, number of running and suspended queries, and spilled bytes.

  3. Test auto-scaling by running a query that overloads a single cluster, then check information_schema.engines to observe the change in the CLUSTERS value. You can use any query to test this functionality as long as it can overload the engine. The following example is one such query, but you can use any query that causes the engine to overload.

    1. In the Develop Space, run the following example query in two separate tabs simultaneously.
      The following code example calculates the maximum product of a.x and b.y after casting them to BIGINT, and the total count of joined rows from two generated series of numbers ranging from 1 to 1,000,000:
      SELECT MAX(a.x::bigint * b.y::bigint), COUNT(*)
FROM GENERATE_SERIES(1, 1000000) AS a(x)
JOIN GENERATE_SERIES(1, 1000000) AS b(y) ON TRUE;

    2. After about a minute, enter the code example in step 1 in a new tab. The query should return the numbers of CLUSTERS as 2 as shown in the following table:

      clusters min_clusters max_clusters
      2 1 2
    3. Stop the engine to stop resource consumption. These queries can run for a very long time and prevent the engine from stopping automatically. The following code example stops an engine without waiting for running queries to finish:
     STOP ENGINE your_engine WITH TERMINATE=true

If you are using Firebolt in preview mode, you can only use a single cluster for your engines. If you want to try using multi-cluster engines, contact Firebolt support. Additionally, when scaling an engine, both the old and new compute resources may be active at the same time for a period. This simultaneous operation can result in higher consumption of Firebolt Units (FBUs).

Automatically start or stop an engine

You can configure an engine to start automatically after creation and to stop after a set idle time.

Configure automatic start/stop using the UI

  1. In the Create new engine menu, open Advanced Settings.
  2. Disable Start engine immediately to prevent the engine from starting upon creation.

  3. To configure automatic stopping, enable Automatically stop engine and set your idle timeout. The default is 20 minutes. Toggle the button off to disable auto-stop.

Configure automatic start/stop using the API

Use the CREATE ENGINE command to set auto-start and auto-stop options:

CREATE ENGINE my_prod_engine WITH
INITIALLY_STOPPED = true AUTO_STOP = 10;

The previous example creates an engine that remains stopped after creation and auto-stops after 10 minutes of inactivity.

To modify the auto-stop feature later, use the ALTER ENGINE command:

ALTER ENGINE my_prod_engine SET AUTO_STOP = 30;

The INITIALLY_STOPPED function can only be set during engine creation and cannot be modified afterward.
